Series SA28S

SA28S Frameless Sliding Window

Overview

About the SA28S series

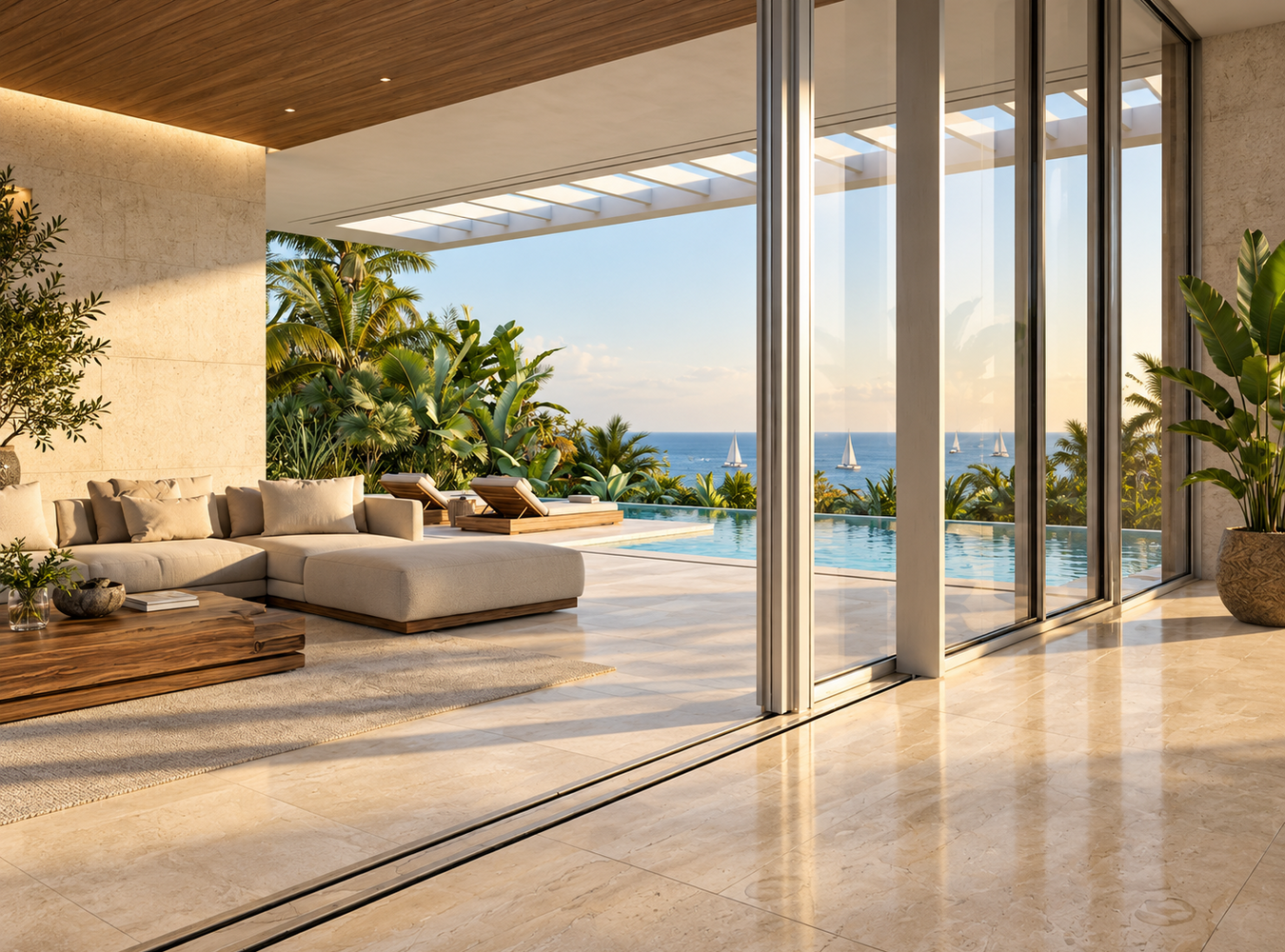

A unique horizontal opening solution where the entire surrounding frame can be concealed within marble, granite, wood or any wall/floor finish. The expansive openings offer maximum light with the fewest possible visible profiles — the architectural barrier between inside and out ceases to exist.
Technical Characteristics

System Specification

SYSTEM TECHNICAL SPECIFICATION
Profile Alloy 6063 - T6
Glass Thickness (mm) 8, 13.5, 18, 28
Max Height Shutter (mm) 3400
Multi Locking Yes
Max Sq.mtr / Sash 6
Maximum Weight of each Shutter (Kgs) 350 / 500
Hidden Bottom Possible
Corner Opening Possible
Mosquito Mesh Not Possible
APPLICATION PROFILE DETAILS
Top & Side Frame Height (mm) 52
Bottom Frame Height (mm) 62
Frame Width — 2T2S (mm) 112
Frame Width — 3T3S (mm) 174
Sightline at Interlock (mm) 18
Center Meeting — 2T4S (mm) 18
