Series SA28C & PRO

SA28C & PRO Concealed Sliding System

Overview

About the SA28C & PRO series

Sleek lines and unobtrusive beauty define the SA28 Concealed sliding window system. SA28C offers a complete hidden-track solution that creates the illusion of space and a seamless connection between indoors and out. Great strength and security, with high-performance rollers for effortless sliding.

Technical Characteristics

System Specification

SYSTEM TECHNICAL SPECIFICATION
Profile Alloy	6063 - T6
Glass Thickness (mm)	8, 13.5, 18, 28
Max Height Shutter (mm)	3400
Multi Locking	Yes
Max Sq.mtr / Sash	6
Maximum Weight of each Shutter (Kgs)	350 / 500
Hidden Bottom	Possible
Corner Opening	Possible
Mosquito Mesh	Not Possible

APPLICATION PROFILE DETAILS
Top & Side Frame Height (mm)	52
Bottom Frame Height (mm)	62
Frame Width — 2T2S (mm)	112
Frame Width — 3T3S (mm)	174
Sightline at Interlock (mm)	18
Center Meeting — 2T4S (mm)	18

Gallery

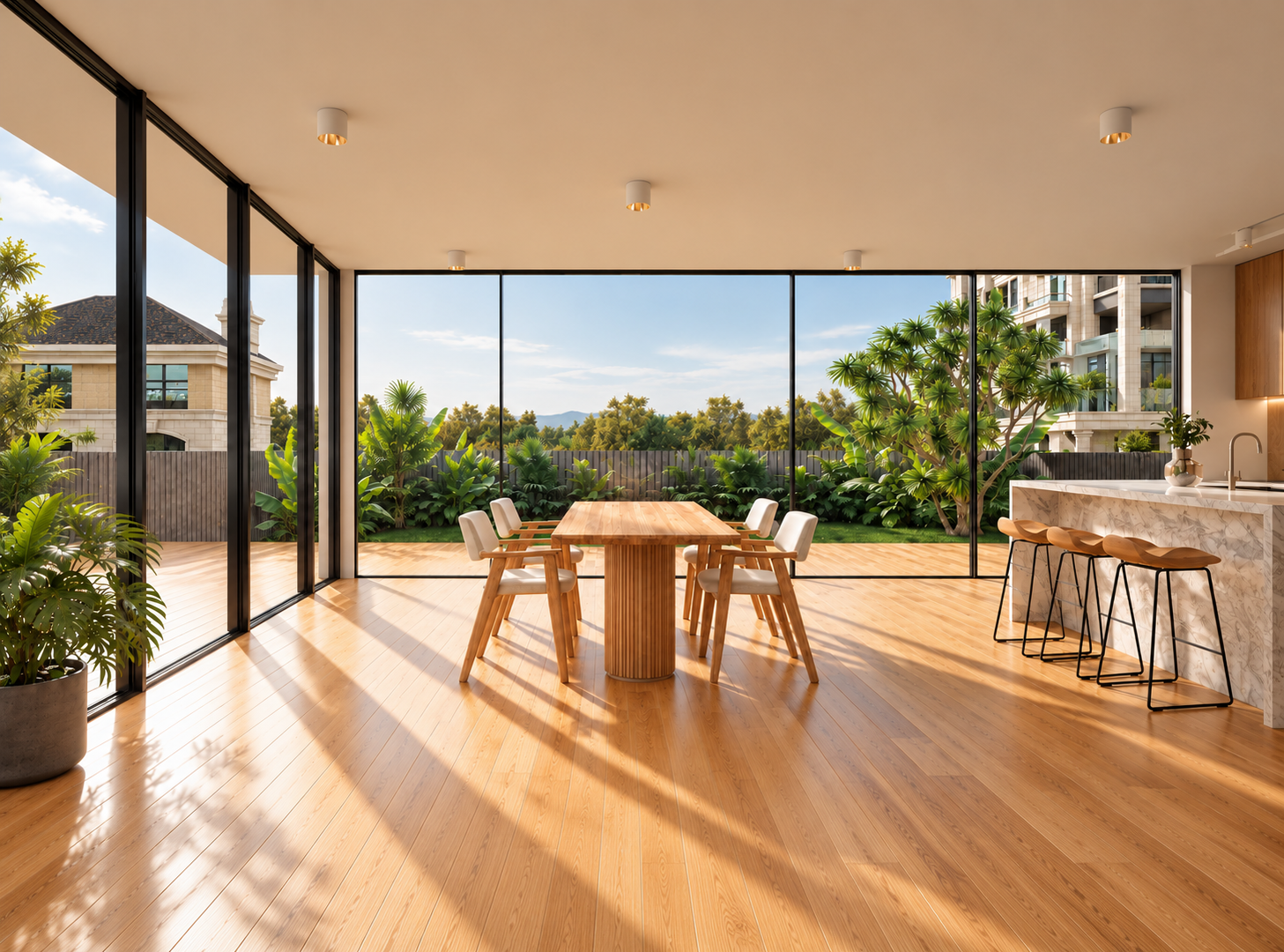

Installations & Profile Detail
